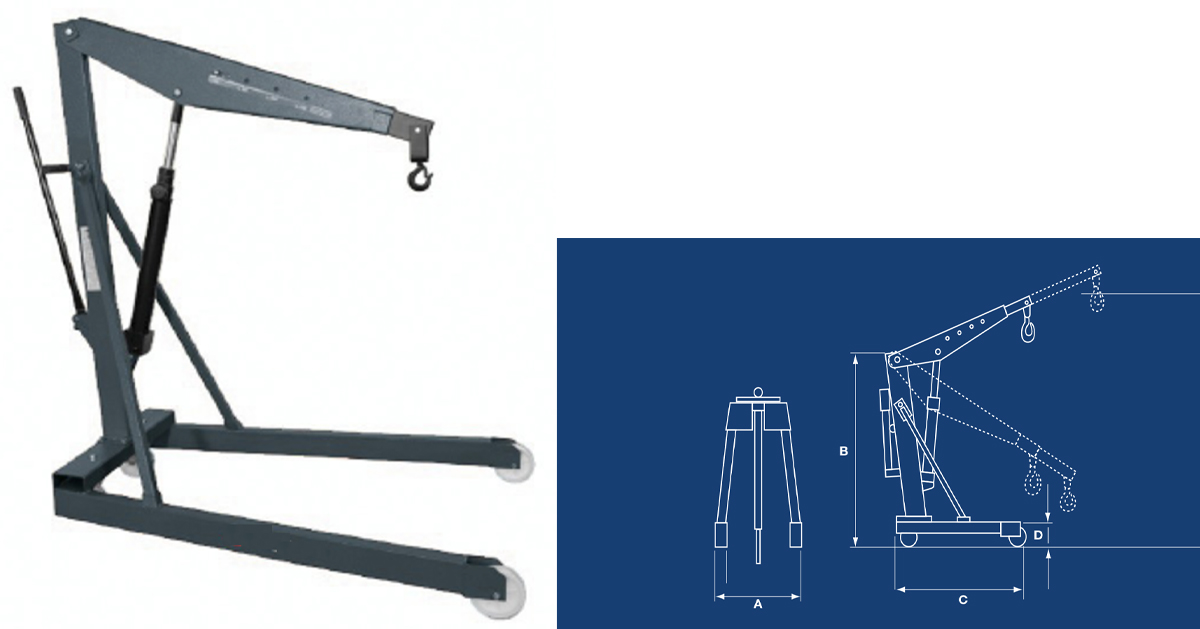

| Capacity | Weight | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | |
|---|---|---|---|---|---|---|---|
| LC-005S | 0.5 t | 77 Kg | 885 | 1.620 | 1.260 | 143 | 2.360 |
| LC-010S | 1 t | 95 Kg | 1.060 | 1.750 | 1.520 | 170 | 2.250 |
| LC-010D | 1 t | 95 Kg | 1.060 | 1.750 | 1.520 | 170 | 2.250 |
| LC-020D | 2 t | 211 Kg | 1.200 | 1.960 | 2.000 | 240 | 3.145 |
| LC-005SF (foldable) | 0.5 t | 83 Kg | 860 | 1.540 | 1.530 | 143 | 2.190 |
| LC-010SF (foldable) | 1 t | 99 Kg | 1.000 | 1.560 | 1.600 | 170 | 2.420 |
