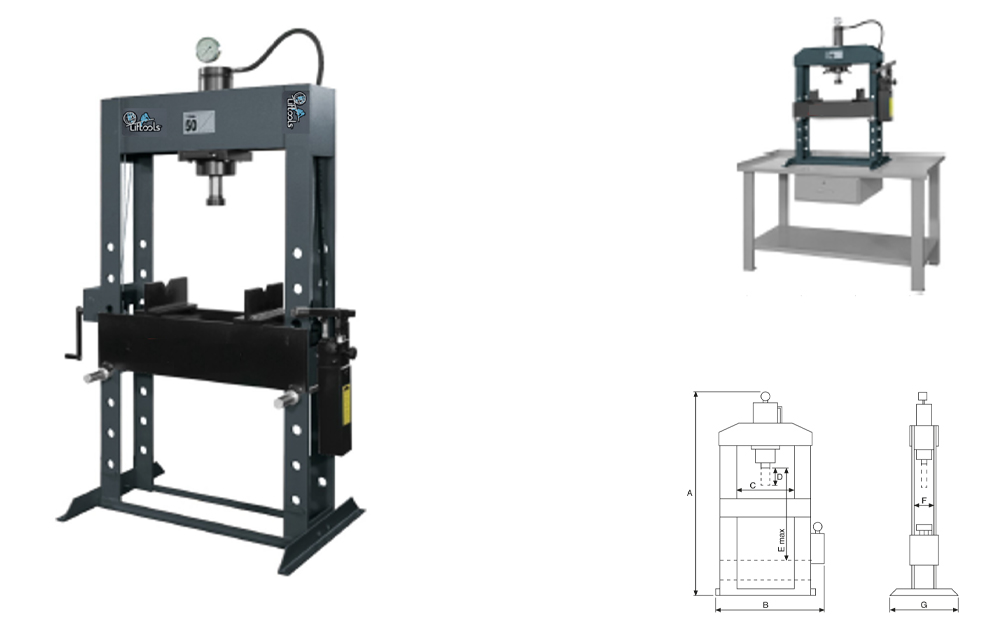

| Capacity | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | Weight | |
|---|---|---|---|---|---|---|---|---|---|
| LP-D/10 | 15 t | 1.900 | 870 | 550 | 180 | 1.100 | 125 | 500 | 100 Kg |
| LP-D/20 | 20 t | 2.000 | 1.000 | 620 | 180 | 1.100 | 150 | 500 | 130 Kg |
| LP-D/30 | 30 t | 2.130 | 1.200 | 700 | 200 | 1.150 | 180 | 650 | 230 Kg |
| LP-D/50 | 50 t | 2.300 | 1.300 | 800 | 200 | 1.100 | 180 | 750 | 350 Kg |
| LP-D/100 | 100 t | 2.300 | 1.530 | 1.020 | 200 | 1.000 | 265 | 850 | 1.050 Kg |
